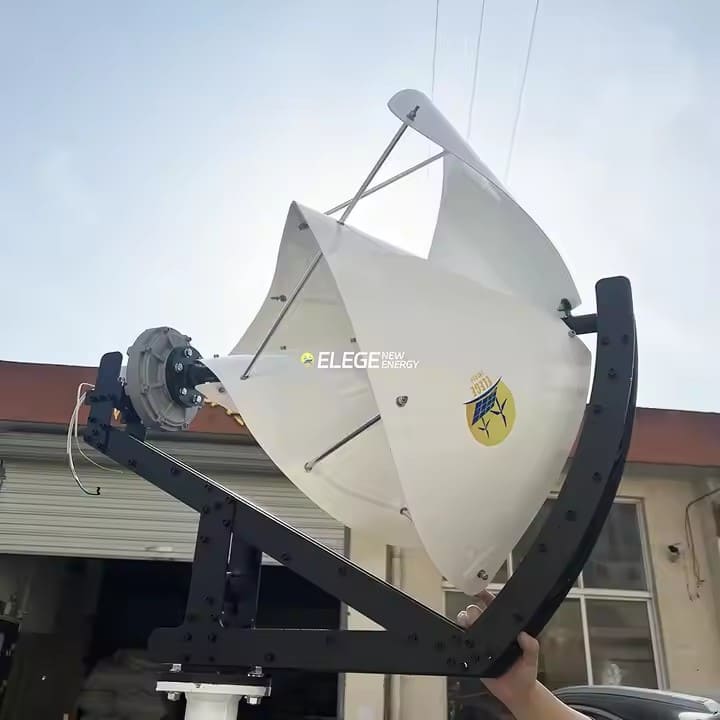

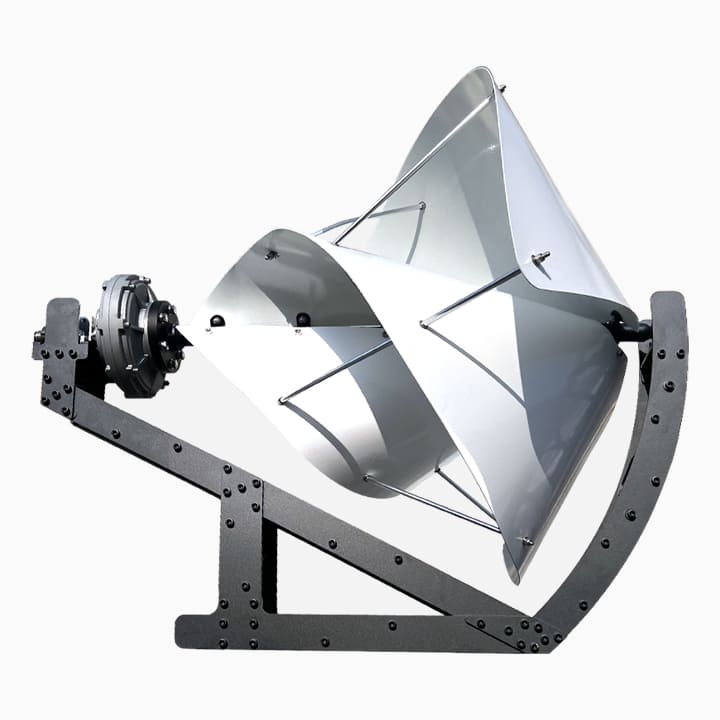

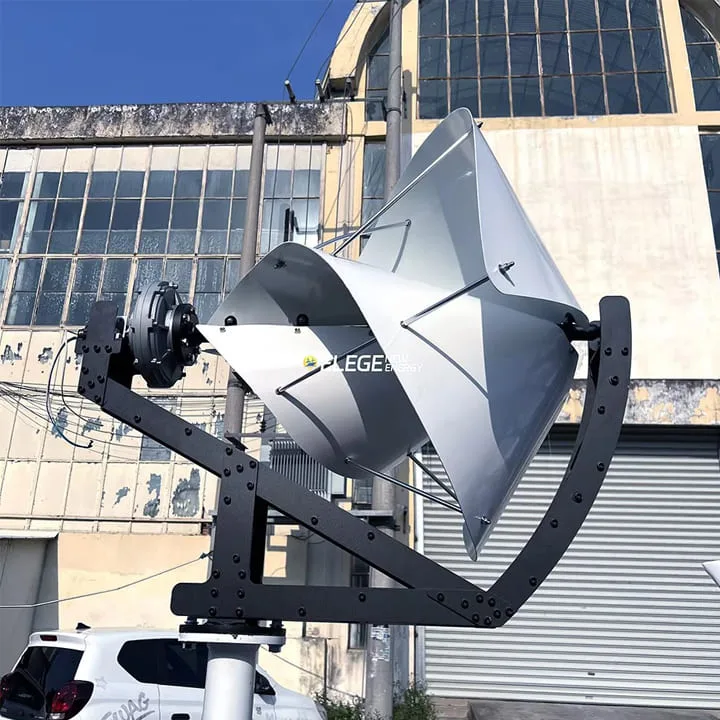

Horizontal Axis Wind Turbine MODEL: F1 500W-5KW

• Low start-up wind speed, small size, beautiful appearance and low vibration during operation;
• Use the humanized flange installation design, which is convenient for installation and maintenance;
• The blades are made of nylon fiber, with low starting wind speed and high wind energy utilization coefficient;
• The generator adopts the magnet-bearing rotor alternator of Amway technology, equipped with a special rotor design, which effectively reduces the resistance torque of the generator, which is only 1/3 of the ordinary motor, and at the same time makes the wind wheel and generator more powerful. for good matching characteristics;
• Adopt maximum power tracking intelligent microprocessor control to effectively adjust current and voltage;

Product Description

MODEL: Liam F1 Wind Turbine

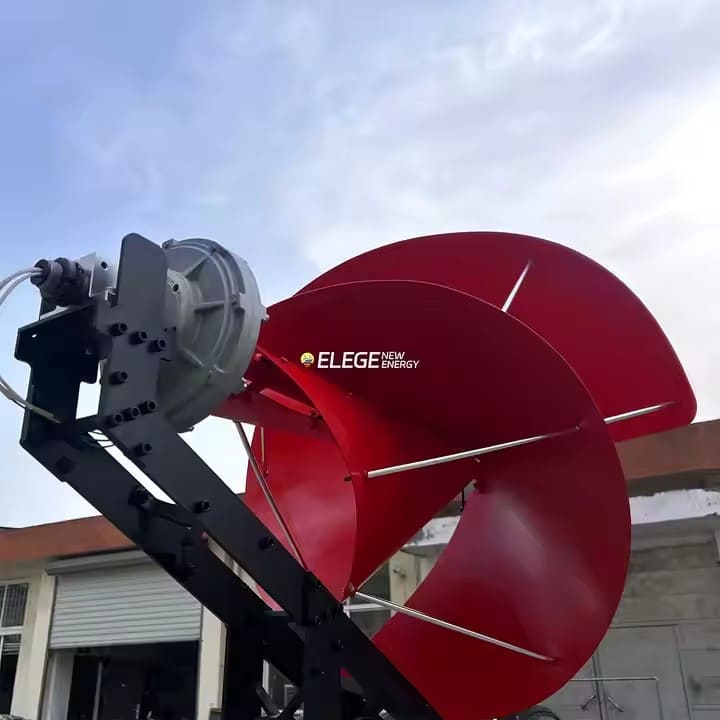

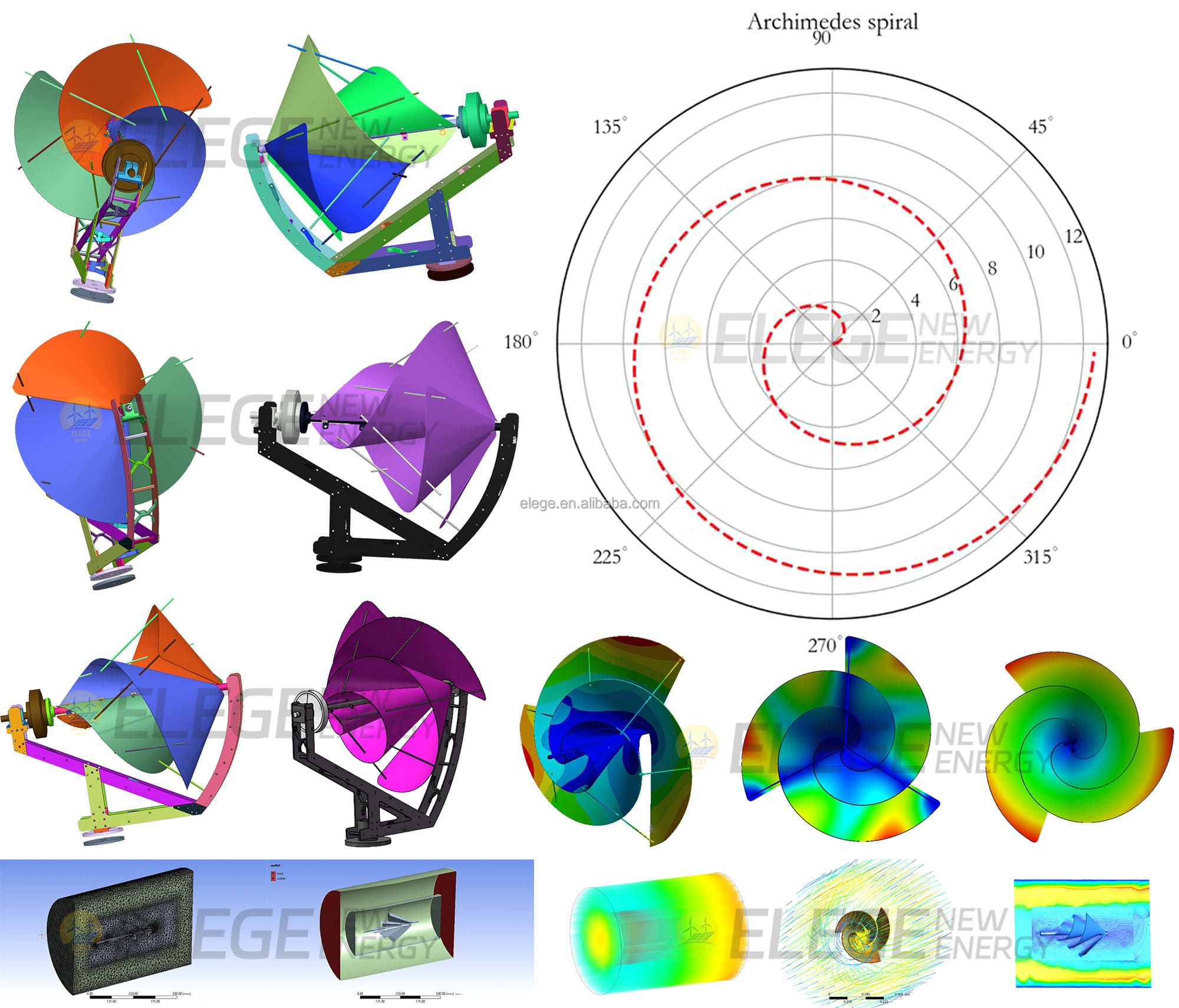

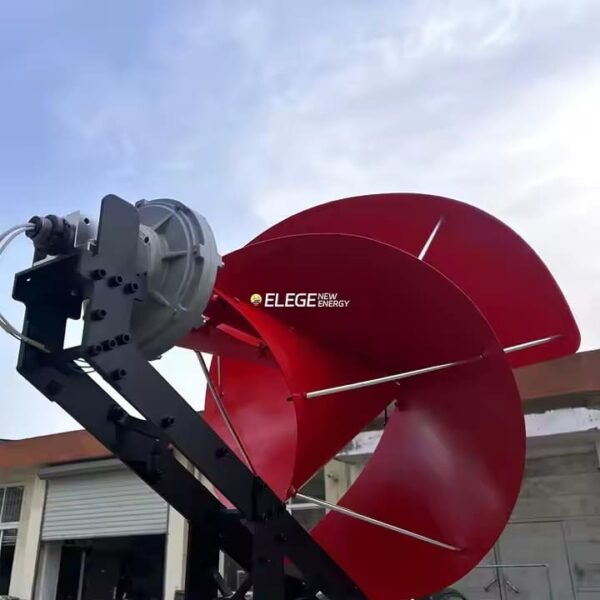

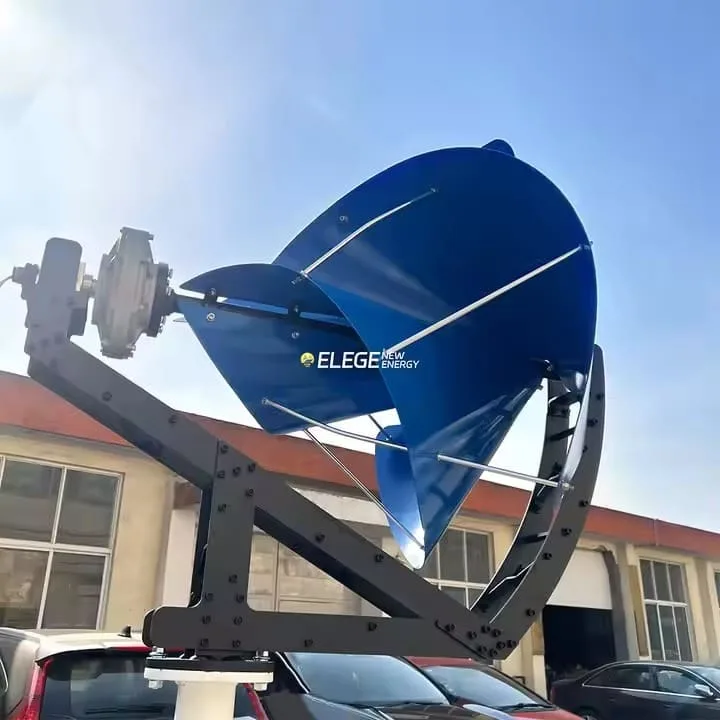

F1 Series Archimedes Wind Turbine

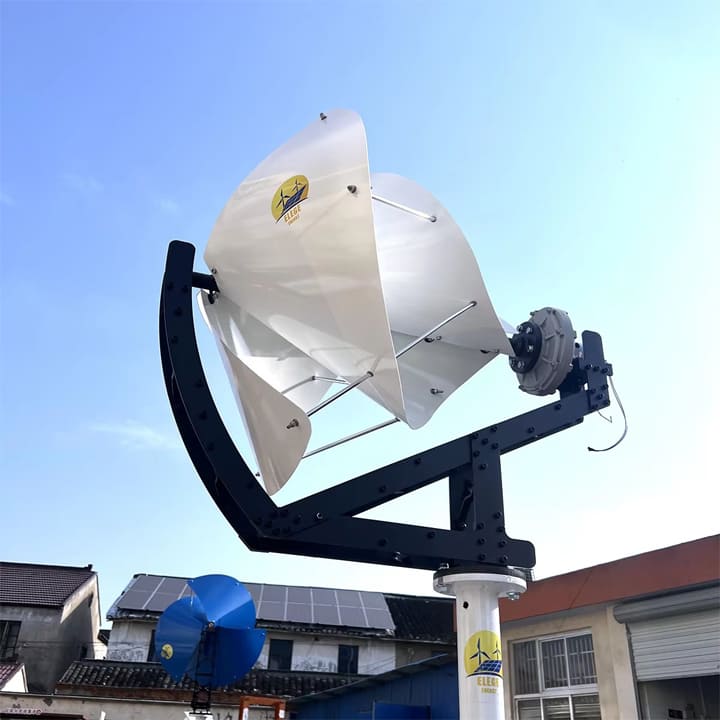

This new turbine is easy to install on the roof of a house, just like installing solar panels. It can produce an average of 1,500 kilowatt-hours of energy at a wind speed of 5 meters per second, which is similar to half the energy consumption of an average household.
The design of the new wind turbine solves the problems of efficiency and noise. Its shape is like a nautilus shell, and it automatically points to the best position of the wind like a pennant to achieve maximum production capacity. According to CTO Marinus, a maximum yield of 80% is theoretically feasible.
“Most wind turbines today require a pressure difference between the front and the back of the rotor blades to be efficient, but this pressure difference also has a negative effect called “drag”. The new turbine rotor captures the kinetic energy of the wind due to its speed and converts it into mechanical energy by twisting the wind and reducing it to almost zero wind level. The effect of such wind speed on the rotor (on kinetic energy) can be maximized and enhanced by the acceleration of the wind on the rotorcraft.”

Model	Liam-500	Liam-1000	Liam-2000	Liam-5000
Rated power	500W	1000W	2000W	5000W
Starting wind speed(m/s)	<1.0 m/s	<1.0 m/s	<1.5 m/s	<1.5 m/s
Optional voltage	12/24V	12/24V	24/48V	24/48V
Cut-in wind speed(m/s)	3m/s	3m/s	3m/s	3m/s
Rated wind speed	13m/s	13m/s	13m/s	13m/s
Leaf material	FRP/Composite material
Number of blades	3 pieces
Generator protection class	IP54
Generator	Coreless 3 phase AC generator
Control system	Electromagnetic brake
Overload protection	Self lubrication
Overspeed protection	Electromagnetic brake or load relief
Working temperature	Wind turbine is-2~5~+45℃ Inverter is0~+40℃
