A 10kW wind turbine offers a practical renewable energy solution for farms, workshops, commercial sites, and wind-solar hybrid power projects. Compared with small residential wind generators, a 10kW system needs a more complete electrical design, especially when users want to connect it to the utility grid.
Grid connection does not depend on the wind turbine alone. The system also needs a wind turbine controller, grid-tie inverter, protection devices, metering equipment, and sometimes switchgear or a grid connection cabinet. Therefore, each part plays an important role in safety, power conversion, and grid compliance.
This guide explains the main equipment needed for a 10kW wind turbine grid connection and shows how each part works in the system.
10kW Wind Turbine for Grid-Connected Projects
ELEGE builds the EQ Series Q-type 10kW wind turbine for customized wind power projects. This vertical axis wind turbine uses a vertical blade structure, aluminum alloy body, electromagnetic brake system, and three-phase AC permanent magnet generator.
Customers use this model in grid-connected wind power systems, wind-solar hybrid systems, and project-based renewable energy applications. In addition, the model supports flexible system matching for different voltage, site, and project requirements.
A 10kW wind turbine can support grid-connected use. However, users should not connect the turbine directly to the utility grid. The power must first pass through control, conversion, protection, and metering equipment.
ELEGE EQ Series 10kW Wind Turbine Specifications
| Item | Specification |
|---|---|
| Model | EL-EQ-10KW |
| Product Type | Vertical Axis Wind Turbine |
| Rated Power | 10kW |
| Maximum Power | 11kW |
| Rated Voltage | 220V / 380V |
| Start-up Wind Speed | 3 m/s |
| Rated Wind Speed | 14 m/s |
| Survival Wind Speed | 40 m/s |
| Number of Blades | 3 blades |
| Body Material | Aluminum alloy |
| Generator | Three-phase AC permanent magnet generator / maglev generator |
| Brake System | Electromagnetic brake |
| Yaw Mode | Automatic windward angle |
| Lubrication Mode | Self-lubrication |
| Working Temperature | -40°C to 80°C |
| Certification | CE |
| Customization | Supported |
| Generator Warranty | 20 years |
| Stock Status | Ready stock available |
These specifications make the EQ Series 10kW wind turbine suitable for customized power projects. Moreover, users can match the turbine with different controllers, inverters, and wind-solar hybrid system designs according to the project site.
Basic Grid Connection Process
A 10kW wind turbine generates electricity from wind, but the output changes with wind speed. Before the electricity enters the utility grid, the system must control, convert, protect, and measure the power.
The basic connection process is:

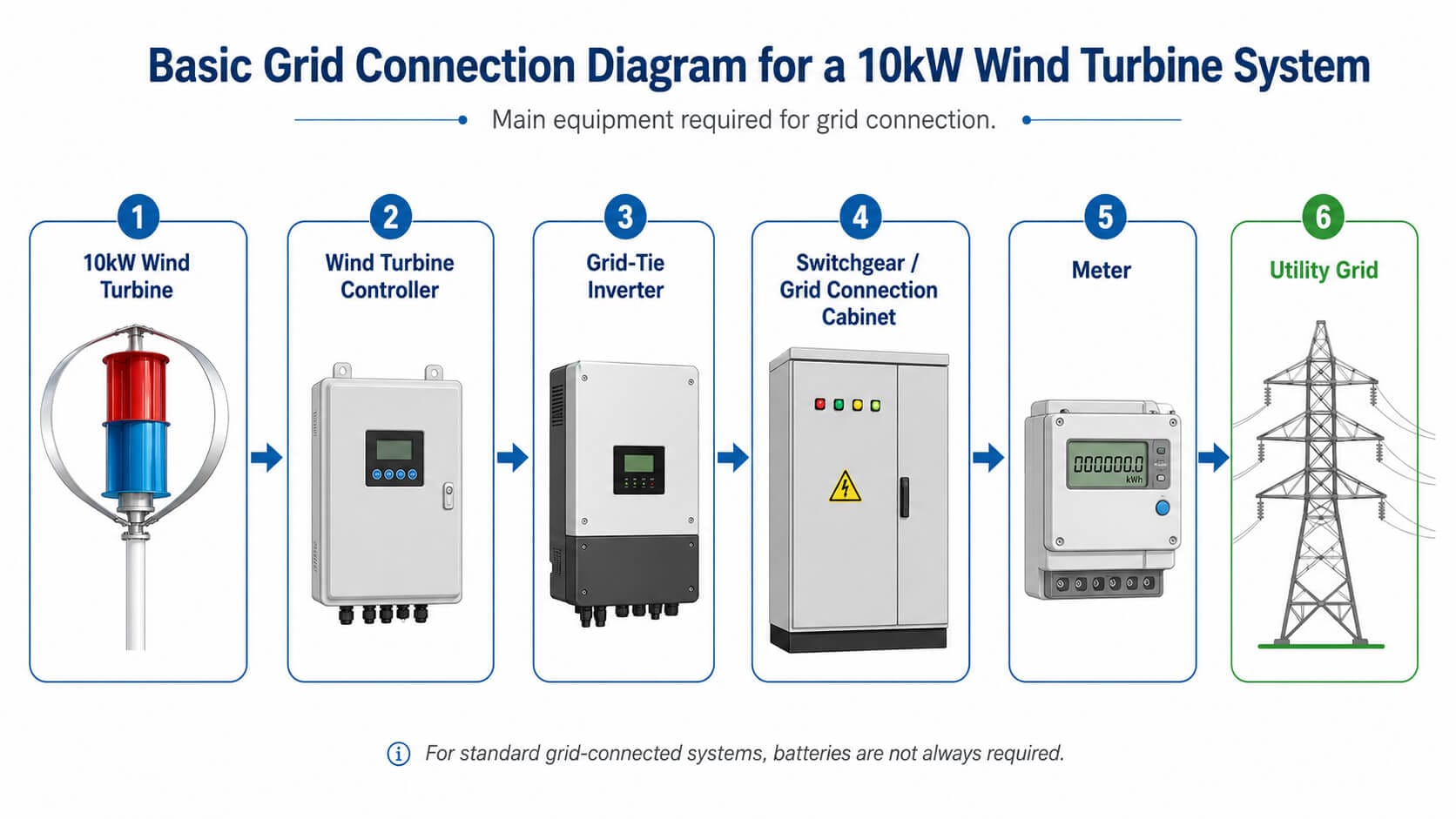

10kW Wind Turbine → Wind Turbine Controller → Grid-Tie Inverter → Switchgear / Grid Connection Cabinet → Meter → Utility Grid
As a result, the system can match grid voltage and frequency more safely. It also gives users better protection during operation and maintenance.
Main Equipment Required for Grid Connection
10kW Vertical Axis Wind Turbine
The wind turbine works as the core power generation unit. It converts wind energy into electrical energy.
For the ELEGE EQ Series 10kW model, the rated power reaches 10kW and the maximum power reaches 11kW. Its vertical axis design helps the turbine handle changing wind directions, so it suits different installation environments.
Before choosing a 10kW wind turbine, users should check the local wind speed, installation space, tower height, grid voltage, and project power demand. For example, a farm project and a commercial building may need different system configurations.
Wind Turbine Controller
The wind turbine controller manages the power output and protects the turbine.
It helps with overvoltage protection, overspeed protection, automatic braking, and strong wind protection. For this reason, a 10kW wind turbine system needs a suitable controller to protect both the turbine and the equipment behind it.
In addition, the controller helps the system handle changing wind conditions. This improves safety and supports more stable operation.
Grid-Tie Inverter
The grid-tie inverter converts the controlled power into AC electricity that matches the utility grid.
Different projects may use different grid conditions, such as 220V, 230V, 380V, 400V, 50Hz, or 60Hz. Therefore, users should choose the inverter according to local grid voltage, frequency, and utility requirements.
For grid-connected systems, the inverter should also support necessary grid protection functions, such as anti-islanding protection. This helps protect both the wind power system and the utility grid.
Switchgear or Grid Connection Cabinet
For a 10kW wind turbine grid connection, the project may require switchgear or a grid connection cabinet for AC protection, metering, and safe connection to the utility grid.
For this reason, the cabinet design should follow local grid standards. A qualified Switchgear Manufacturer can supply the final cabinet according to project requirements.
Switchgear or a grid connection cabinet may include circuit breakers, surge protection, isolator switches, metering interfaces, and grid protection devices. In most cases, the final requirement depends on the local power company and electrical regulations.
Metering and Protection Devices
A grid-connected wind turbine system usually needs a metering system to record power generation, power consumption, and exported electricity.
Protection devices may include AC breakers, DC breakers, fuses, surge protection devices, grounding systems, and lightning protection. In addition, these devices help reduce electrical risks during operation, maintenance, and abnormal grid conditions.
Battery and Wind-Solar Hybrid Options
For a standard grid-connected 10kW wind turbine system, users do not always need batteries. The electricity can supply local loads or enter the utility grid through the inverter and metering system.
However, users can add batteries when the project needs backup power, off-grid operation, or energy storage.
The 10kW wind turbine can also work with solar panels to build a wind-solar hybrid power system. Wind and solar complement each other well. Solar panels usually generate more power during sunny daytime hours, while wind turbines may continue to generate power at night or during cloudy weather when wind is available.
For grid-connected wind-solar systems, batteries remain optional. For off-grid or backup systems, users usually need batteries to store energy.
Off-Grid vs Grid-Connected 10kW Wind Turbine Systems
| System Type | Main Equipment | Battery Needed? | Switchgear Needed? |
|---|---|---|---|
| 10kW Off-grid System | Wind turbine, controller, battery, off-grid inverter | Usually yes | Usually not |
| 10kW Grid-connected System | Wind turbine, controller, grid-tie inverter, meter, protection devices | Not always | Often required |
| 10kW Wind-Solar Hybrid System | Wind turbine, solar panels, controller, inverter, protection devices | Optional | Depends on design |
The same 10kW wind turbine can serve different system designs. However, the final configuration depends on whether the project uses an off-grid, grid-connected, or hybrid power solution.
ELEGE 10kW Wind Turbine Project Support
ELEGE provides wind turbines, wind turbine controllers, inverter matching suggestions, and customized wind power system solutions.
For 10kW wind turbine projects, ELEGE helps customers choose a suitable configuration based on wind speed, voltage, installation site, grid connection needs, and wind-solar hybrid design.
The ELEGE EQ Series 10kW vertical axis wind turbine supports customization, has CE certification, and offers a 20-year warranty for the generator. In addition, ready stock is available for project needs.
For grid-connected projects, customers should follow local utility requirements for the final grid connection cabinet and electrical approval.
Conclusion
A 10kW wind turbine grid connection needs more than the turbine itself. A complete system usually includes a wind turbine controller, grid-tie inverter, protection devices, metering equipment, and sometimes switchgear or a grid connection cabinet.
For standard grid-connected systems, users do not always need batteries. However, off-grid, backup, or wind-solar-storage systems may require batteries according to the project design.
ELEGE provides customized 10kW wind turbine solutions for grid-connected and wind-solar hybrid power projects. Contact ELEGE to get a suitable system configuration for your project.
