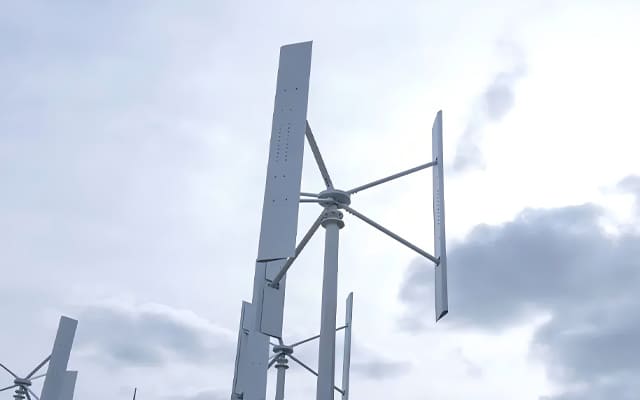

A vertical axis wind mill converts wind into electricity using a rotor that spins around a vertical shaft. Compared to horizontal turbines, this design offers several key advantages: it starts at lower wind speeds, works efficiently in turbulent wind conditions, and doesn’t need to face the wind. Let’s explore the major components that make this system reliable and effective.
1. Tower
The tower holds the entire vertical axis wind mill off the ground, allowing the blades to access higher wind speeds. Manufacturers usually build towers from steel or concrete, depending on the system size and installation site.
-
Steel towers offer light weight and flexibility, perfect for residential or small-scale systems.
-
Concrete towers provide extra durability for larger or more permanent setups.
Designers calculate the tower height based on local wind resources and energy needs, ensuring maximum efficiency and stability.
2. Vertical Shaft and Rotor
At the heart of every vertical axis wind mill lies the vertical rotor shaft. It connects directly to the blades and spins as the wind pushes against them.
-
The main shaft transfers torque from the blades to the generator.
-
Blade arms support the structure and keep the system balanced.
-
Bearings at the center reduce friction and let the rotor spin freely.
This design allows the turbine to capture wind from any direction without adjusting its orientation.
3. Generator System
As the rotor spins, the generator system turns that mechanical energy into electricity.
-
A permanent magnet generator efficiently produces clean power with minimal maintenance.
-
Direct drive setups eliminate the need for gearboxes, boosting reliability.
-
The controller manages voltage and frequency for smooth energy output.
Some systems also combine wind and solar power for hybrid setups, offering consistent power day and night.
4. Blades
The blades determine how well a vertical axis wind mill captures energy from the wind. Their shape, angle, and material all play critical roles.
-
Common shapes include straight, curved, and helical (twisted) designs.
-
Most blades use lightweight, durable materials like fiberglass or aluminum alloy.
-
Engineers focus on making blades aerodynamic, quiet, and resistant to extreme weather.
The right blade design helps the turbine start quickly and generate more energy over time.
5. Control and Monitoring
Smart control systems ensure the vertical axis wind mill runs safely and efficiently.
-
Wind sensors measure real-time speed and direction.
-
Data loggers collect performance stats like RPM and voltage.
-
Inverters match the power output to grid requirements or battery storage.
-
Some systems store excess power in batteries for later use.
These tools let users monitor and optimize performance with ease.
A vertical axis wind mill offers a powerful and compact solution for generating renewable energy. Its efficient design, simple structure, and ability to perform well in challenging wind environments make it ideal for urban rooftops, remote cabins, or off-grid setups.
If you’re ready to harness wind energy in a smart and reliable way, a vertical axis wind mill can deliver long-term savings and sustainability.
